Occultation event with (4836) Medon, event index number 1040

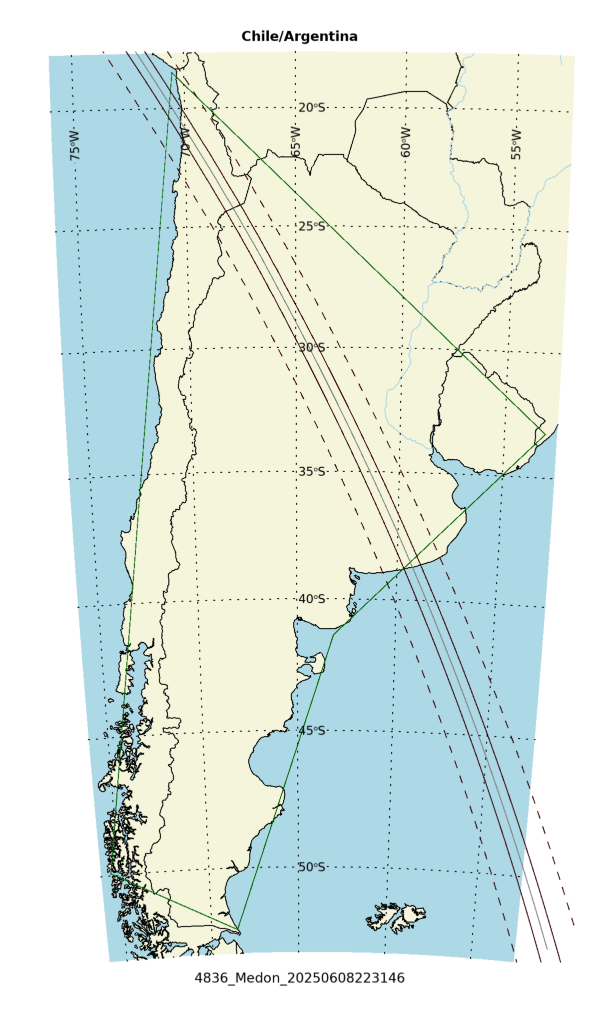

Regions able to see the event: SAmericaS
Geocentric closest approach at 2025/06/08 22:31:46 UTC
J2000 position of star is 11:07:26.7 +26:23:42
Equinox of date position of star is 11:08:48.7 +26:15:25
Star is 77 degrees from the moon. Moon is 95% illuminated.
Stellar brightness G=16.3, apparent brightess of occulting body is G=15.0
Use an exposure time of 0.95 seconds with the standard RECON-QHY system.
SNR of 3.1 per integration for unocculted signal
Expected flux drop is 23% with SNR of 0.7 for the occulted depth (per occulted point)
Apparent velocity is 20.8 km/sec on the sky relative to the star, or, 21.0 arcsec/hr.
The recommended exposure time corresponds to 19.7 km per image.
The 1-sigma error in the time of the event is 2.0 seconds.
The 1-sigma cross-track error in the shadow position is 52.2 km.
The sky-plane scale is 3564.6 km/arcsec.
Diameter estimates:
73.4 km assuming a 5% albedo, aximum of 3.5 sec for a central chord
30.0 km assuming a 30% albedo, maximum of 1.4 sec for a central chord
Cross-track diameter of 73.4 km used for deployment plan.

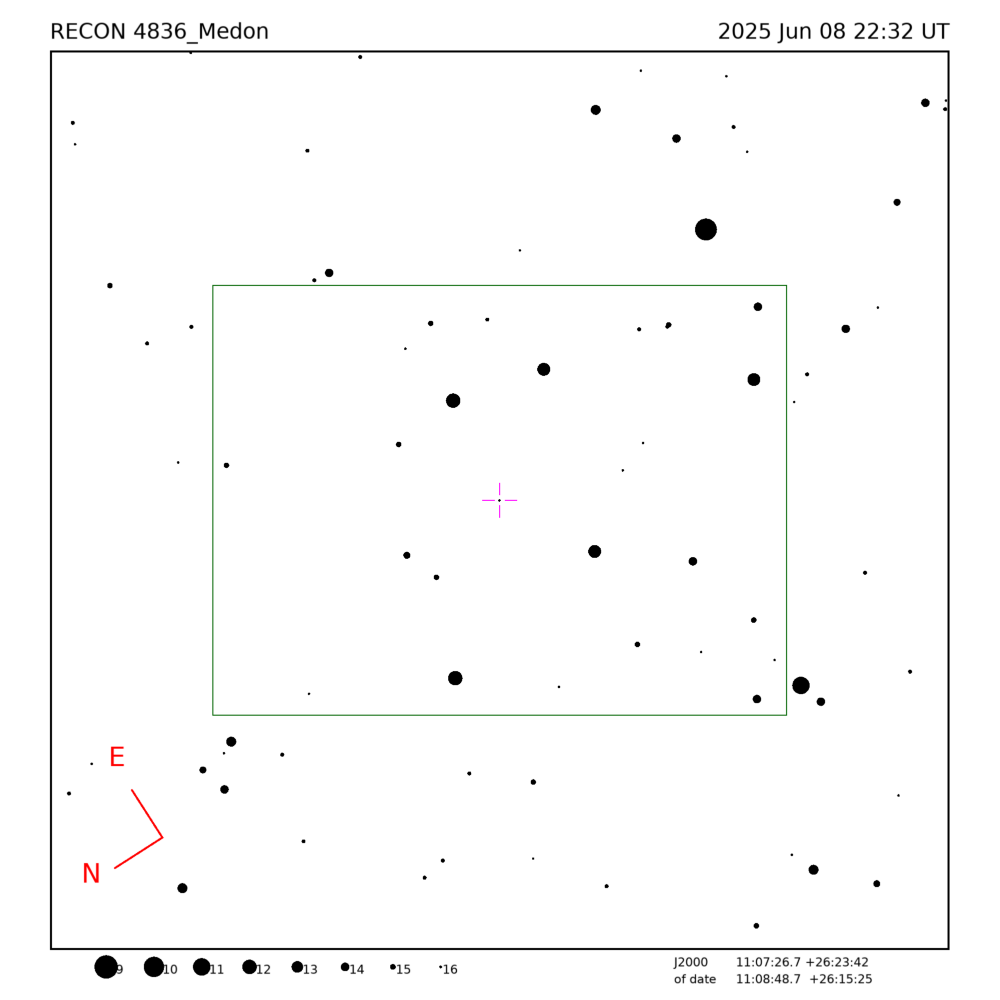

Star training set for 4836_Medon, (2025/06/08 22:32UT) Object RA Dec mag sep mel Regulus 10:09:43.4 +11:50:31 1.3 20.03 82 68Del Leo 11:15:27.4 +20:23:02 2.6 6.07 72 67 Leo 11:10:10.7 +24:31:13 5.7 1.76 76 PPM 100904 11:08:26.6 +25:23:57 7.1 0.86 76 PPM 100898 11:08:05.7 +25:56:28 10.0 0.35 77 PPM 100915 11:09:04.1 +26:05:56 10.4 0.17 77 4836_Medon 11:08:48.7 +26:15:25 15.0 76 Positions are for equinox of date
This table contains the target star visibility for registered SAmericaS sites that are relevant for this occultation. This list has been filtered to only those sites that can see the field and are within range of the shadow given the uncertainties. The observing time range has been calculated to cover the time of the event at each site with allowances for the event timing uncertainty plus time for obtaining a pre and post event baseline lightcurve. This set of stations has a 0.0 % chance of getting at least one chord. There is a 0.0% chance of 2 or more chords assuming clear weather for all.
| Site Name | Site mid-time (UT) |
Sun alt (deg) |
Sky | Moon | Star alt (deg) |
Star az (deg) |
Target | Observing Time | Xtrack (km) |
Prob |
|---|---|---|---|---|---|---|---|---|---|---|
Star training set for 4836_Medon, (2025/06/08 22:32UT) Object RA Dec mag sep mel Regulus 10:08:21.9 +11:58:02 1.3 20.03 82 68Del Leo 11:14:06.7 +20:31:22 2.6 6.07 72 67 Leo 11:08:49.1 +24:39:31 5.7 1.76 76 PPM 100904 11:07:04.8 +25:32:13 7.1 0.86 76 PPM 100898 11:06:43.7 +26:04:44 10.0 0.35 77 PPM 100915 11:07:42.2 +26:14:13 10.4 0.17 77 4836_Medon 11:07:26.7 +26:23:42 15.0 77 Positions are for J2000
